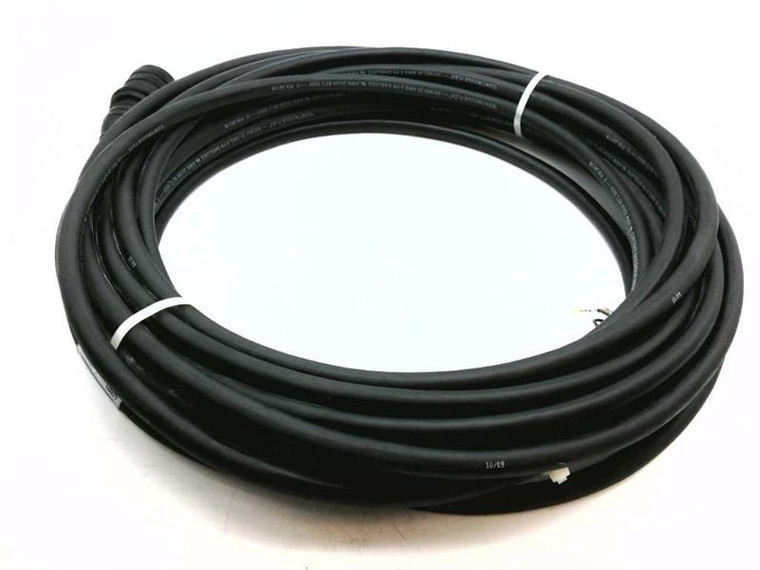

Description: The 1326-CPB1T-L-015 motor power cable by Allen-Bradley is part of the Bulletin 1326 cable product line. The product consists of connector and cable assembly for power connections for servo motors such as the 1326AB-B4xx and 1326AB-B5xx types of servo motors. This is an IP 67 rated flex cable for high-flex applications with a length of 15 meters (49.2 feet).
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1326-CPB1T-L-015 Used Surplus
Allen Bradley
Description: The 1326-CPB1T-L-015 motor power cable by Allen-Bradley is part of the Bulletin 1326 cable product line. The product consists of connector and cable assembly for power connections for servo motors such as the 1326AB-B4xx and 1326AB-B5xx types of servo motors. This is an IP 67 rated flex cable for high-flex applications with a length of 15 meters (49.2 feet).
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
1326-CPB1T-L-015
Description: Accessories for Motion Products
The product offered is sold as used surplus. Texnite is not an authorized surplus dealer or affiliate of the Manufacturer associated with this product. It's possible that the product may contain older date codes or belong to an earlier series compared to items available directly from the factory or authorized dealers. As Texnite is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply.
Although numerous Allen-Bradley PLC products may contain pre-installed firmware, Texnite does not confirm whether a PLC product has firmware or if the firmware corresponds to the revision level required for your specific application. Additionally, Texnite does not guarantee or imply your capability or entitlement to download or acquire firmware for the product from Rockwell, its distributors, or any other source. Furthermore, Texnite does not assert your right to install any such firmware on the product. Texnite neither obtains nor provides firmware on behalf of customers. It remains your responsibility to adhere to the terms stated in any End-User License Agreement or a similar document related to obtaining or installing firmware.
Technical Specifications for 1326-CPB1T-L-015
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 1326 Motors |
| Part Number | 1326-CPB1T-L-015 |
| Type | Connector and cable assembly |
| Function | Power connection |
| Supported motors | 1326AB-B4xx / 1326AB-B5xx |
| Motor frame | 4/48 |
| Flex cable option | Flex-rated cable for high-flex application |
| Connector accessory | Single-standard connector |
| Connector type | 9-pin to flying leads |
| Connector design | Molded push/pull |
| IP rating | IP67 (harsh environment) |
| EM noise immunity | Braided cable shield |
| Cable length | 15 meters (49.2 feet) |
| Certification | UL listed |
| UPC | 662453474106 |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326-CPB1T-L-015 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326-CPB1T-L-015 units instead of migration.
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 1326 Motors |
| Part Number | 1326-CPB1T-L-015 |
| Type | Connector and cable assembly |
| Function | Power connection |
| Supported motors | 1326AB-B4xx / 1326AB-B5xx |
| Motor frame | 4/48 |
| Flex cable option | Flex-rated cable for high-flex application |
| Connector accessory | Single-standard connector |
| Connector type | 9-pin to flying leads |
| Connector design | Molded push/pull |
| IP rating | IP67 (harsh environment) |
| EM noise immunity | Braided cable shield |
| Cable length | 15 meters (49.2 feet) |
| Certification | UL listed |
| UPC | 662453474106 |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326-CPB1T-L-015 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326-CPB1T-L-015 units instead of migration.
sAbout 1326-CPB1T-L-015
The catalogue number 1326-CPB1T-L-015 is reserved for a power cable that is made for Allen-Bradley/Rockwell Automation servo motors. This power cable is part of Series B (Bulletin 1326) of the Allen-Bradley cables and it is UL listed. The power cables like this one have an excellent minimum bend radius rating and flex rating that cannot be matched by similar products on the market. The 1326-CPB1T-L-015 cable is intended for servo motors that operate on an input voltage rating of 460 Volts AC. The servo motors for which the 1326 series power cables are intended for performing at high levels and operating on three-phase power sources. The 1326 servo motors are brushless AC synchronous motors designed for applications with demanding requirements and they include a wide range of unique features. Some of these features include 100% continuous rated output torque at a stall, a vertical mounting option, environmentally sealed cables, MIL-spec connectors, a top notch insulation system, and an increased servo response.
The 1326-CPB1T-L-015 cable is intended for use with the 1326AB-B4xx and 1326AB-B5xx Allen-Bradley servo motors and it includes a connector and cable assembly. The included flying leads connector has 9 pins and the cable is intended for motors with 4/48 frames. This power cable is flex-rated and it is designed for high-flex applications. The 1326-CPB1T-L-015 power cable is made for harsh working environments, so it includes an IP 67 ingress protection rating. The length of the 1326-CPB1T-L-015 cable is 15 meters (49.2 feet) and the 1326 cable series provides motor power cables with lengths from 5 to 90 meters (16.4 to 295.2 feet). The cable includes a shield for a high level of electromagnetic noise immunity and the molded connectors are push/pull connectors that allow for easy installation and maintenance.
