Allen Bradley 1326AB-B430E-21-K4 Used Surplus

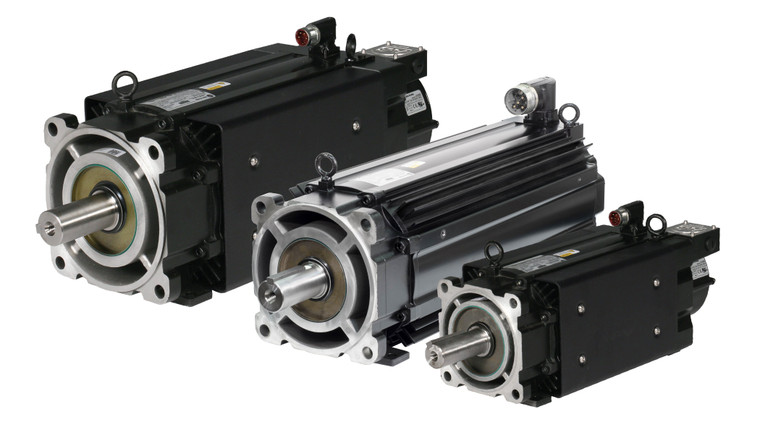

The 1326AB-B430E-21-K4 is a ferrite AC Servo Motor from the Torque Plus 1326AB series. This device is manufactured and designed by Allen-Bradley. The Allen-Bradley 1326AB-B430E-21-K4 AC Servo Motor provides an engineering mechanism that reduces the motor's length and increases continuous torque ratings in order to guarantee reliable and high-performance operations. The Allen-Bradley 1326AB-B430E-21-K4 AC Servo Motor operates with a voltage rating of 380 to 460 Volts AC, a rated speed of 3000/2500 RPM, and a frame diameter of 108 millimeters (115 millimeters bolt center), along with a torque of 8.1 N-m (72 pounds on an inch) and a holding brake with a 24 Volt DC coil. The Allen-Bradley 1326AB-B430E-21-K4 AC Servo Motor can operate without derating at a temperature rating of 0 degrees Celsius to 40 degrees Celsius.

The Allen-Bradley 1326AB-B430E-21-K4 AC Servo Motor has features like a three-phase stator to provide smooth operations at low speeds, 100% continuous-rated output torque at zero rpm, a threaded hole on the face of the shaft for safety options, and a thermal switch that provides the indication when there is a thermal overloading. The Allen-Bradley 1326AB-B430E-21-K4 AC Servo Motor installation premises states that this servo motor needs to be installed in an environment where the temperature does not exceed the 50 degrees Celsius (122 degrees Fahrenheit). It must be installed on a flat and rigid vertical surface that will not be exposed to vibrations, shocks, oil mist, vapors and any other substance or particle that could impede the proper functioning of the unit. This unit also needs clearances in order to allow a proper airflow and proper cable bend radius. The motor weight is 16.8 kilograms (37 pounds).
